Custom Fences

intermediate

Initial Block JSON
Fence Model
- Block Model
- Item Model
Applying Geometry & Textures
- Item Visual
Collision & Selection Boxes
Final Block JSON
Item JSON

Download Example

FORMAT VERSION 1.26.40

This tutorial assumes a good understanding of block visuals and block permutations. Check out the block visuals guide before starting.

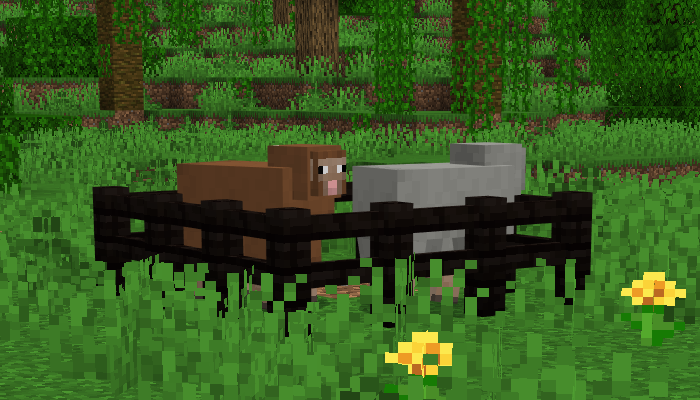

In this tutorial, you'll learn how to create your own fence blocks with connection and multi-box collisions.

Features:

Connects with adjacent blocks in each cardinal direction.
Multi-box collisions that are 1.5 blocks tall, preventing most entities from jumping over the fence.
Able to be used as fuel in a furnace.

Initial Block JSON

There are quite a few components listed here. Here's what is important for fences specifically:

The minecraft:connection trait enables the minecraft:connection_north, minecraft:connection_south, minecraft:connection_west and minecraft:connection_east states which indicate in which directions the fence should form a connection.
The minecraft:has_fence_connections tag tells vanilla wooden fences that they can connect to the block.
The minecraft:connection_rule component is used to prevent bars, glass panes and walls from connecting to the block.

Note that the block description does not have the menu_category parameter as that will be defined in the item JSON instead in a later step.

📝 BP/blocks/custom_fence.json

json

{
    "format_version": "1.26.40",
    "minecraft:block": {
        "description": {
            "identifier": "wiki:custom_fence",
            "traits": {
                "minecraft:connection": {
                    "enabled_states": ["minecraft:cardinal_connections"]
                }
            }
        },
        "components": {
            "minecraft:tags": [
                "minecraft:has_fence_connections",
                "minecraft:is_axe_item_destructible"
            ],
            "minecraft:destructible_by_explosion": {
                "explosion_resistance": 15
            },
            "minecraft:destructible_by_mining": {
                "seconds_to_destroy": 2
            },
            "minecraft:destruction_particles": {
                "particle_count": 48
            },
            "minecraft:flammable": {
                "catch_chance_modifier": 5,
                "destroy_chance_modifier": 20,
                "lava_flammable": "always"
            },
            "minecraft:connection_rule": {
                "accepts_connections_from": "only_fences"
            },
            "minecraft:support": {
                "shape": "fence"
            },
            // Prevents snow from accumulating above the fence
            "minecraft:precipitation_interactions": {
                "precipitation_behavior": "obstruct_rain"
            },
            // Allows the fence to be waterlogged
            "minecraft:liquid_detection": {
                "detection_rules": [
                    {
                        "liquid_type": "water",
                        "can_contain_liquid": true
                    }
                ]
            },
            // Allows leads to be attached to the fence
            "minecraft:leashable": {
                "offset": [0, 12, 0]
            },
            "minecraft:selection_box": {
                "origin": [-2, 0, -2],
                "size": [4, 16, 4]
            },
            "minecraft:collision_box": {
                "origin": [-2, 0, -2],
                "size": [4, 24, 4]
            }
        }
    }
}

Fence Model

You might have noticed that fences use two distinct models: one when carried in the inventory depicting two posts and a different model when placed which only has one post.

This means that we'll have to create two models for our custom fence, where one is applied to the block and the other is applied to the block item.

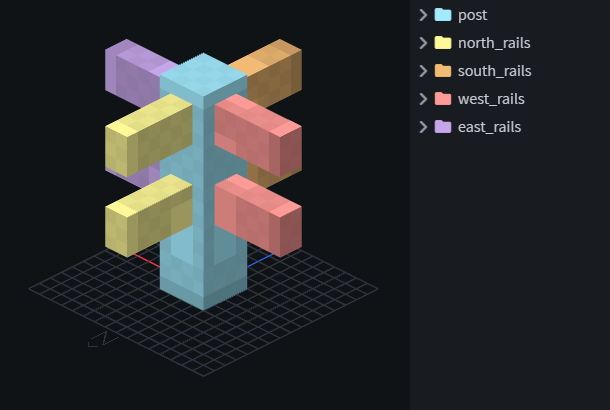

Block Model

In this example, our block model will contain all of the fence rails (the horizontal parts of the fence). Each pair of rails in each direction is contained within a separate bone. This will allow us to conditionally show/hide the rails based on the block's permutation using bone_visibility.

Block Geometry JSON

📝 RP/models/blocks/custom_fence.geo.json

json

{
    "format_version": "1.26.40",
    "minecraft:geometry": [
        {
            "description": {
                "identifier": "geometry.custom_fence",
                "texture_width": 16,
                "texture_height": 16
            },
            "bones": [
                {
                    "name": "post",
                    "pivot": [0, 0, 0],
                    "cubes": [
                        {
                            "origin": [-2, 0, -2],
                            "size": [4, 16, 4],
                            "uv": {
                                "north": { "uv": [6, 0], "uv_size": [4, 16] },
                                "east": { "uv": [6, 0], "uv_size": [4, 16] },
                                "south": { "uv": [6, 0], "uv_size": [4, 16] },
                                "west": { "uv": [6, 0], "uv_size": [4, 16] },
                                "up": { "uv": [10, 10], "uv_size": [-4, -4] },
                                "down": { "uv": [10, 10], "uv_size": [-4, -4] }
                            }
                        }
                    ]
                },
                {
                    "name": "north_rails",
                    "pivot": [0, 0, 0],
                    "cubes": [
                        {
                            "origin": [-1, 12, -8],
                            "size": [2, 3, 6],
                            "uv": {
                                "north": { "uv": [7, 1], "uv_size": [2, 3] },
                                "east": { "uv": [10, 1], "uv_size": [6, 3] },
                                "west": { "uv": [0, 1], "uv_size": [6, 3] },
                                "up": { "uv": [9, 6], "uv_size": [-2, -6] },
                                "down": { "uv": [9, 16], "uv_size": [-2, -6] }
                            }
                        },
                        {
                            "origin": [-1, 6, -8],
                            "size": [2, 3, 6],
                            "uv": {
                                "north": { "uv": [7, 7], "uv_size": [2, 3] },
                                "east": { "uv": [10, 7], "uv_size": [6, 3] },
                                "west": { "uv": [0, 7], "uv_size": [6, 3] },
                                "up": { "uv": [9, 6], "uv_size": [-2, -6] },
                                "down": { "uv": [9, 16], "uv_size": [-2, -6] }
                            }
                        }
                    ]
                },
                {
                    "name": "south_rails",
                    "pivot": [0, 0, 0],
                    "cubes": [
                        {
                            "origin": [-1, 12, 2],
                            "size": [2, 3, 6],
                            "uv": {
                                "east": { "uv": [0, 1], "uv_size": [6, 3] },
                                "south": { "uv": [7, 1], "uv_size": [2, 3] },
                                "west": { "uv": [10, 1], "uv_size": [6, 3] },
                                "up": { "uv": [9, 16], "uv_size": [-2, -6] },
                                "down": { "uv": [9, 6], "uv_size": [-2, -6] }
                            }
                        },
                        {
                            "origin": [-1, 6, 2],
                            "size": [2, 3, 6],
                            "uv": {
                                "east": { "uv": [0, 7], "uv_size": [6, 3] },
                                "south": { "uv": [7, 7], "uv_size": [2, 3] },
                                "west": { "uv": [10, 7], "uv_size": [6, 3] },
                                "up": { "uv": [9, 16], "uv_size": [-2, -6] },
                                "down": { "uv": [9, 6], "uv_size": [-2, -6] }
                            }
                        }
                    ]
                },
                {
                    "name": "west_rails",
                    "pivot": [0, 0, 0],
                    "cubes": [
                        {
                            "origin": [2, 12, -1],
                            "size": [6, 3, 2],
                            "uv": {
                                "north": { "uv": [10, 1], "uv_size": [6, 3] },
                                "south": { "uv": [0, 1], "uv_size": [6, 3] },
                                "west": { "uv": [7, 1], "uv_size": [2, 3] },
                                "up": { "uv": [6, 9], "uv_size": [-6, -2] },
                                "down": { "uv": [6, 9], "uv_size": [-6, -2] }
                            }
                        },
                        {
                            "origin": [2, 6, -1],
                            "size": [6, 3, 2],
                            "uv": {
                                "north": { "uv": [10, 7], "uv_size": [6, 3] },
                                "south": { "uv": [0, 7], "uv_size": [6, 3] },
                                "west": { "uv": [7, 7], "uv_size": [2, 3] },
                                "up": { "uv": [6, 9], "uv_size": [-6, -2] },
                                "down": { "uv": [6, 9], "uv_size": [-6, -2] }
                            }
                        }
                    ]
                },
                {
                    "name": "east_rails",
                    "pivot": [0, 0, 0],
                    "cubes": [
                        {
                            "origin": [-8, 12, -1],
                            "size": [6, 3, 2],
                            "uv": {
                                "north": { "uv": [0, 1], "uv_size": [6, 3] },
                                "east": { "uv": [7, 1], "uv_size": [2, 3] },
                                "south": { "uv": [10, 1], "uv_size": [6, 3] },
                                "up": { "uv": [16, 9], "uv_size": [-6, -2] },
                                "down": { "uv": [16, 9], "uv_size": [-6, -2] }
                            }
                        },
                        {
                            "origin": [-8, 6, -1],
                            "size": [6, 3, 2],
                            "uv": {
                                "north": { "uv": [0, 7], "uv_size": [6, 3] },
                                "east": { "uv": [7, 7], "uv_size": [2, 3] },
                                "south": { "uv": [10, 7], "uv_size": [6, 3] },
                                "up": { "uv": [16, 9], "uv_size": [-6, -2] },
                                "down": { "uv": [16, 9], "uv_size": [-6, -2] }
                            }
                        }
                    ]
                }
            ]
        }
    ]
}

Block Culling Rules JSON

📝 RP/block_culling/custom_fence.json

json

{
    "format_version": "1.21.80",
    "minecraft:block_culling_rules": {
        "description": {
            "identifier": "wiki:culling.custom_fence"
        },
        "rules": [
            // Post
            {
                "direction": "down",
                "geometry_part": {
                    "bone": "post",
                    "cube": 0,
                    "face": "down"
                }
            },
            {
                "direction": "up",
                "geometry_part": {
                    "bone": "post",
                    "cube": 0,
                    "face": "up"
                }
            },
            // North rails
            {
                "direction": "north",
                "geometry_part": {
                    "bone": "north_rails",
                    "cube": 0,
                    "face": "north"
                }
            },
            {
                "direction": "north",
                "geometry_part": {
                    "bone": "north_rails",
                    "cube": 1,
                    "face": "north"
                }
            },
            // South rails
            {
                "direction": "south",
                "geometry_part": {
                    "bone": "south_rails",
                    "cube": 0,
                    "face": "south"
                }
            },
            {
                "direction": "south",
                "geometry_part": {
                    "bone": "south_rails",
                    "cube": 1,
                    "face": "south"
                }
            },
            // West rails
            {
                "direction": "west",
                "geometry_part": {
                    "bone": "west_rails",
                    "cube": 0,
                    "face": "west"
                }
            },
            {
                "direction": "west",
                "geometry_part": {
                    "bone": "west_rails",
                    "cube": 1,
                    "face": "west"
                }
            },
            // East rails
            {
                "direction": "east",
                "geometry_part": {
                    "bone": "east_rails",
                    "cube": 0,
                    "face": "east"
                }
            },
            {
                "direction": "east",
                "geometry_part": {
                    "bone": "east_rails",
                    "cube": 1,
                    "face": "east"
                }
            }
        ]
    }
}

Item Model

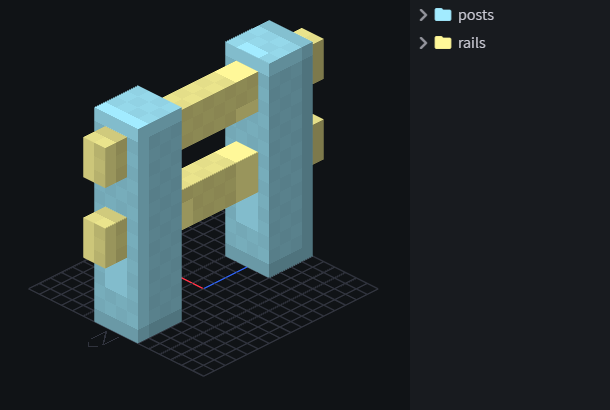

In contrast, the bones in the item model are not necessary and have just been used to organize the cubes.

Item Geometry JSON

📝 RP/models/blocks/custom_fence_carried.geo.json

json

{
    "format_version": "1.26.40",
    "minecraft:geometry": [
        {
            "description": {
                "identifier": "geometry.custom_fence_carried",
                "texture_width": 16,
                "texture_height": 16
            },
            "item_display_transforms": {
                "gui": {
                    "fit_to_frame": false
                },
                "fixed": {
                    "rotation": [0, -90, 0]
                },
                "shelf": {
                    "rotation": [0, -90, 0]
                }
            },
            "bones": [
                {
                    "name": "posts",
                    "pivot": [0, 0, 0],
                    "cubes": [
                        {
                            "origin": [-2, 0, 4],
                            "size": [4, 16, 4],
                            "uv": {
                                "north": { "uv": [6, 0], "uv_size": [4, 16] },
                                "east": { "uv": [0, 0], "uv_size": [4, 16] },
                                "south": { "uv": [6, 0], "uv_size": [4, 16] },
                                "west": { "uv": [12, 0], "uv_size": [4, 16] },
                                "up": { "uv": [10, 16], "uv_size": [-4, -4] },
                                "down": { "uv": [10, 4], "uv_size": [-4, -4] }
                            }
                        },
                        {
                            "origin": [-2, 0, -8],
                            "size": [4, 16, 4],
                            "uv": {
                                "north": { "uv": [6, 0], "uv_size": [4, 16] },
                                "east": { "uv": [12, 0], "uv_size": [4, 16] },
                                "south": { "uv": [6, 0], "uv_size": [4, 16] },
                                "west": { "uv": [0, 0], "uv_size": [4, 16] },
                                "up": { "uv": [10, 4], "uv_size": [-4, -4] },
                                "down": { "uv": [10, 16], "uv_size": [-4, -4] }
                            }
                        }
                    ]
                },
                {
                    "name": "rails",
                    "pivot": [0, 0, 0],
                    "cubes": [
                        {
                            "origin": [-1, 12, -10],
                            "size": [2, 3, 2],
                            "uv": {
                                "north": { "uv": [0, 1], "uv_size": [2, 3] },
                                "east": { "uv": [0, 1], "uv_size": [2, 3] },
                                "west": { "uv": [0, 1], "uv_size": [2, 3] },
                                "up": { "uv": [9, 16], "uv_size": [-2, -2] },
                                "down": { "uv": [9, 16], "uv_size": [-2, -2] }
                            }
                        },
                        {
                            "origin": [-1, 12, -4],
                            "size": [2, 3, 8],
                            "uv": {
                                "east": { "uv": [4, 1], "uv_size": [8, 3] },
                                "west": { "uv": [4, 1], "uv_size": [8, 3] },
                                "up": { "uv": [9, 12], "uv_size": [-2, -8] },
                                "down": { "uv": [9, 12], "uv_size": [-2, -8] }
                            }
                        },
                        {
                            "origin": [-1, 12, 8],
                            "size": [2, 3, 2],
                            "uv": {
                                "east": { "uv": [14, 1], "uv_size": [2, 3] },
                                "south": { "uv": [14, 1], "uv_size": [2, 3] },
                                "west": { "uv": [14, 1], "uv_size": [2, 3] },
                                "up": { "uv": [9, 2], "uv_size": [-2, -2] },
                                "down": { "uv": [9, 2], "uv_size": [-2, -2] }
                            }
                        },
                        {
                            "origin": [-1, 6, -10],
                            "size": [2, 3, 2],
                            "uv": {
                                "north": { "uv": [0, 7], "uv_size": [2, 3] },
                                "east": { "uv": [0, 7], "uv_size": [2, 3] },
                                "west": { "uv": [0, 7], "uv_size": [2, 3] },
                                "up": { "uv": [9, 16], "uv_size": [-2, -2] },
                                "down": { "uv": [9, 16], "uv_size": [-2, -2] }
                            }
                        },
                        {
                            "origin": [-1, 6, -4],
                            "size": [2, 3, 8],
                            "uv": {
                                "east": { "uv": [4, 7], "uv_size": [8, 3] },
                                "west": { "uv": [4, 7], "uv_size": [8, 3] },
                                "up": { "uv": [9, 12], "uv_size": [-2, -8] },
                                "down": { "uv": [9, 12], "uv_size": [-2, -8] }
                            }
                        },
                        {
                            "origin": [-1, 6, 8],
                            "size": [2, 3, 2],
                            "uv": {
                                "east": { "uv": [14, 7], "uv_size": [2, 3] },
                                "south": { "uv": [14, 7], "uv_size": [2, 3] },
                                "west": { "uv": [14, 7], "uv_size": [2, 3] },
                                "up": { "uv": [9, 2], "uv_size": [-2, -2] },
                                "down": { "uv": [9, 2], "uv_size": [-2, -2] }
                            }
                        }
                    ]
                }
            ]
        }
    ]
}

Applying Geometry & Textures

📝 BP/blocks/custom_fence.json

minecraft:blockcomponents

json

"minecraft:geometry": {
    "identifier": "geometry.custom_fence",
    "culling": "wiki:culling.custom_fence",
    "bone_visibility": {
        "north_rails": "q.block_state('minecraft:connection_north')",
        "south_rails": "q.block_state('minecraft:connection_south')",
        "west_rails": "q.block_state('minecraft:connection_west')",
        "east_rails": "q.block_state('minecraft:connection_east')"
    }
}

In this example, we will simply be applying a custom wooden planks texture to our fence, although you might instead like to create a special model and texture for your fence like bamboo fences have in vanilla.

📝 BP/blocks/custom_fence.json

minecraft:blockcomponents

json

"minecraft:material_instances": {
    "*": {
        "texture": "wiki:custom_planks"
    }
}

Item Visual

Next, we can use the minecraft:item_visual component to apply the item model to the block item:

📝 BP/blocks/custom_fence.json

minecraft:blockcomponents

json

"minecraft:item_visual": {
    "geometry": "geometry.custom_fence_carried",
    "material_instances": {
        "*": {
            "texture": "wiki:custom_planks"
        }
    }
}

Collision & Selection Boxes

Unlike geometry bones, collision and selection boxes cannot be individually enabled/disabled based on block states. This means we'll have to manually list the components for each block permutation making use of the permutations array.

📝 BP/blocks/custom_fence.json

minecraft:block

json

"permutations": [
    // Single connection
    {
        "condition": "q.block_state('minecraft:connection_north')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-2, 0, -8],
                "size": [4, 16, 10]
            },
            "minecraft:collision_box": {
                "origin": [-2, 0, -8],
                "size": [4, 24, 10]
            }
        }
    },
    {
        "condition": "q.block_state('minecraft:connection_south')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-2, 0, -2],
                "size": [4, 16, 10]
            },
            "minecraft:collision_box": {
                "origin": [-2, 0, -2],
                "size": [4, 24, 10]
            }
        }
    },
    {
        "condition": "q.block_state('minecraft:connection_west')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-2, 0, -2],
                "size": [10, 16, 4]
            },
            "minecraft:collision_box": {
                "origin": [-2, 0, -2],
                "size": [10, 24, 4]
            }
        }
    },
    {
        "condition": "q.block_state('minecraft:connection_east')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-8, 0, -2],
                "size": [10, 16, 4]
            },
            "minecraft:collision_box": {
                "origin": [-8, 0, -2],
                "size": [10, 24, 4]
            }
        }
    },
    // Two connections (axis-aligned)
    {
        "condition": "q.block_state('minecraft:connection_north') && q.block_state('minecraft:connection_south')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-2, 0, -8],
                "size": [4, 16, 16]
            },
            "minecraft:collision_box": {
                "origin": [-2, 0, -8],
                "size": [4, 24, 16]
            }
        }
    },
    {
        "condition": "q.block_state('minecraft:connection_west') && q.block_state('minecraft:connection_east')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-8, 0, -2],
                "size": [16, 16, 4]
            },
            "minecraft:collision_box": {
                "origin": [-8, 0, -2],
                "size": [16, 24, 4]
            }
        }
    },
    // Two connections (corner)
    {
        "condition": "q.block_state('minecraft:connection_north') && q.block_state('minecraft:connection_west')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-2, 0, -8],
                "size": [10, 16, 10]
            },
            "minecraft:collision_box": [
                { "origin": [-2, 0, -8], "size": [4, 24, 10] },
                { "origin": [2, 0, -2], "size": [6, 24, 4] }
            ]
        }
    },
    {
        "condition": "q.block_state('minecraft:connection_north') && q.block_state('minecraft:connection_east')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-8, 0, -8],
                "size": [10, 16, 10]
            },
            "minecraft:collision_box": [
                { "origin": [-2, 0, -8], "size": [4, 24, 10] },
                { "origin": [-8, 0, -2], "size": [6, 24, 4] }
            ]
        }
    },
    {
        "condition": "q.block_state('minecraft:connection_south') && q.block_state('minecraft:connection_west')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-2, 0, -2],
                "size": [10, 16, 10]
            },
            "minecraft:collision_box": [
                { "origin": [-2, 0, -2], "size": [4, 24, 10] },
                { "origin": [2, 0, -2], "size": [6, 24, 4] }
            ]
        }
    },
    {
        "condition": "q.block_state('minecraft:connection_south') && q.block_state('minecraft:connection_east')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-8, 0, -2],
                "size": [10, 16, 10]
            },
            "minecraft:collision_box": [
                { "origin": [-2, 0, -2], "size": [4, 24, 10] },
                { "origin": [-8, 0, -2], "size": [6, 24, 4] }
            ]
        }
    },
    // Three connections
    {
        "condition": "q.block_state('minecraft:connection_north') && q.block_state('minecraft:connection_south') && q.block_state('minecraft:connection_west')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-2, 0, -8],
                "size": [10, 16, 16]
            },
            "minecraft:collision_box": [
                { "origin": [-2, 0, -8], "size": [4, 24, 16] },
                { "origin": [2, 0, -2], "size": [6, 24, 4] }
            ]
        }
    },
    {
        "condition": "q.block_state('minecraft:connection_north') && q.block_state('minecraft:connection_south') && q.block_state('minecraft:connection_east')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-8, 0, -8],
                "size": [10, 16, 16]
            },
            "minecraft:collision_box": [
                { "origin": [-2, 0, -8], "size": [4, 24, 16] },
                { "origin": [-8, 0, -2], "size": [6, 24, 4] }
            ]
        }
    },
    {
        "condition": "q.block_state('minecraft:connection_north') && q.block_state('minecraft:connection_west') && q.block_state('minecraft:connection_east')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-8, 0, -8],
                "size": [16, 16, 10]
            },
            "minecraft:collision_box": [
                { "origin": [-8, 0, -2], "size": [16, 24, 4] },
                { "origin": [-2, 0, -8], "size": [4, 24, 6] }
            ]
        }
    },
    {
        "condition": "q.block_state('minecraft:connection_south') && q.block_state('minecraft:connection_west') && q.block_state('minecraft:connection_east')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-8, 0, -2],
                "size": [16, 16, 10]
            },
            "minecraft:collision_box": [
                { "origin": [-8, 0, -2], "size": [16, 24, 4] },
                { "origin": [-2, 0, 2], "size": [4, 24, 6] }
            ]
        }
    },
    // Four connections
    {
        "condition": "q.block_state('minecraft:connection_north') && q.block_state('minecraft:connection_south') && q.block_state('minecraft:connection_west') && q.block_state('minecraft:connection_east')",
        "components": {
            "minecraft:selection_box": {
                "origin": [-8, 0, -8],
                "size": [16, 16, 16]
            },
            "minecraft:collision_box": [
                { "origin": [-2, 0, -8], "size": [4, 24, 16] },
                { "origin": [-8, 0, -2], "size": [16, 24, 4] }
            ]
        }
    }
]

Final Block JSON

Example Custom Fence Block JSON

📝 BP/blocks/custom_fence.json

json

{
    "format_version": "1.26.40",
    "minecraft:block": {
        "description": {
            "identifier": "wiki:custom_fence",
            "traits": {
                "minecraft:connection": {
                    "enabled_states": ["minecraft:cardinal_connections"]
                }
            }
        },
        "components": {
            "minecraft:tags": [
                "minecraft:has_fence_connections",
                "minecraft:is_axe_item_destructible"
            ],
            "minecraft:destructible_by_explosion": {
                "explosion_resistance": 15
            },
            "minecraft:destructible_by_mining": {
                "seconds_to_destroy": 2
            },
            "minecraft:destruction_particles": {
                "particle_count": 48
            },
            "minecraft:flammable": {
                "catch_chance_modifier": 5,
                "destroy_chance_modifier": 20,
                "lava_flammable": "always"
            },
            "minecraft:connection_rule": {
                "accepts_connections_from": "only_fences"
            },
            "minecraft:support": {
                "shape": "fence"
            },
            "minecraft:geometry": {
                "identifier": "geometry.custom_fence",
                "culling": "wiki:culling.custom_fence",
                "bone_visibility": {
                    "north_rails": "q.block_state('minecraft:connection_north')",
                    "south_rails": "q.block_state('minecraft:connection_south')",
                    "west_rails": "q.block_state('minecraft:connection_west')",
                    "east_rails": "q.block_state('minecraft:connection_east')"
                }
            },
            "minecraft:material_instances": {
                "*": {
                    "texture": "wiki:custom_planks"
                }
            },
            // Item icon
            "minecraft:item_visual": {
                "geometry": "geometry.custom_fence_carried",
                "material_instances": {
                    "*": {
                        "texture": "wiki:custom_planks"
                    }
                }
            },
            // Prevents snow from accumulating above the fence
            "minecraft:precipitation_interactions": {
                "precipitation_behavior": "obstruct_rain"
            },
            // Allows the fence to be waterlogged
            "minecraft:liquid_detection": {
                "detection_rules": [
                    {
                        "liquid_type": "water",
                        "can_contain_liquid": true
                    }
                ]
            },
            // Allows leads to be attached to the fence
            "minecraft:leashable": {
                "offset": [0, 12, 0]
            },
            "minecraft:instrument_sound": {
                "up": "note.bassattack"
            },
            "minecraft:selection_box": {
                "origin": [-2, 0, -2],
                "size": [4, 16, 4]
            },
            "minecraft:collision_box": {
                "origin": [-2, 0, -2],
                "size": [4, 24, 4]
            }
        },
        "permutations": [
            // Single connection
            {
                "condition": "q.block_state('minecraft:connection_north')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-2, 0, -8],
                        "size": [4, 16, 10]
                    },
                    "minecraft:collision_box": {
                        "origin": [-2, 0, -8],
                        "size": [4, 24, 10]
                    }
                }
            },
            {
                "condition": "q.block_state('minecraft:connection_south')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-2, 0, -2],
                        "size": [4, 16, 10]
                    },
                    "minecraft:collision_box": {
                        "origin": [-2, 0, -2],
                        "size": [4, 24, 10]
                    }
                }
            },
            {
                "condition": "q.block_state('minecraft:connection_west')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-2, 0, -2],
                        "size": [10, 16, 4]
                    },
                    "minecraft:collision_box": {
                        "origin": [-2, 0, -2],
                        "size": [10, 24, 4]
                    }
                }
            },
            {
                "condition": "q.block_state('minecraft:connection_east')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-8, 0, -2],
                        "size": [10, 16, 4]
                    },
                    "minecraft:collision_box": {
                        "origin": [-8, 0, -2],
                        "size": [10, 24, 4]
                    }
                }
            },
            // Two connections (axis-aligned)
            {
                "condition": "q.block_state('minecraft:connection_north') && q.block_state('minecraft:connection_south')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-2, 0, -8],
                        "size": [4, 16, 16]
                    },
                    "minecraft:collision_box": {
                        "origin": [-2, 0, -8],
                        "size": [4, 24, 16]
                    }
                }
            },
            {
                "condition": "q.block_state('minecraft:connection_west') && q.block_state('minecraft:connection_east')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-8, 0, -2],
                        "size": [16, 16, 4]
                    },
                    "minecraft:collision_box": {
                        "origin": [-8, 0, -2],
                        "size": [16, 24, 4]
                    }
                }
            },
            // Two connections (corner)
            {
                "condition": "q.block_state('minecraft:connection_north') && q.block_state('minecraft:connection_west')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-2, 0, -8],
                        "size": [10, 16, 10]
                    },
                    "minecraft:collision_box": [
                        { "origin": [-2, 0, -8], "size": [4, 24, 10] },
                        { "origin": [2, 0, -2], "size": [6, 24, 4] }
                    ]
                }
            },
            {
                "condition": "q.block_state('minecraft:connection_north') && q.block_state('minecraft:connection_east')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-8, 0, -8],
                        "size": [10, 16, 10]
                    },
                    "minecraft:collision_box": [
                        { "origin": [-2, 0, -8], "size": [4, 24, 10] },
                        { "origin": [-8, 0, -2], "size": [6, 24, 4] }
                    ]
                }
            },
            {
                "condition": "q.block_state('minecraft:connection_south') && q.block_state('minecraft:connection_west')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-2, 0, -2],
                        "size": [10, 16, 10]
                    },
                    "minecraft:collision_box": [
                        { "origin": [-2, 0, -2], "size": [4, 24, 10] },
                        { "origin": [2, 0, -2], "size": [6, 24, 4] }
                    ]
                }
            },
            {
                "condition": "q.block_state('minecraft:connection_south') && q.block_state('minecraft:connection_east')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-8, 0, -2],
                        "size": [10, 16, 10]
                    },
                    "minecraft:collision_box": [
                        { "origin": [-2, 0, -2], "size": [4, 24, 10] },
                        { "origin": [-8, 0, -2], "size": [6, 24, 4] }
                    ]
                }
            },
            // Three connections
            {
                "condition": "q.block_state('minecraft:connection_north') && q.block_state('minecraft:connection_south') && q.block_state('minecraft:connection_west')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-2, 0, -8],
                        "size": [10, 16, 16]
                    },
                    "minecraft:collision_box": [
                        { "origin": [-2, 0, -8], "size": [4, 24, 16] },
                        { "origin": [2, 0, -2], "size": [6, 24, 4] }
                    ]
                }
            },
            {
                "condition": "q.block_state('minecraft:connection_north') && q.block_state('minecraft:connection_south') && q.block_state('minecraft:connection_east')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-8, 0, -8],
                        "size": [10, 16, 16]
                    },
                    "minecraft:collision_box": [
                        { "origin": [-2, 0, -8], "size": [4, 24, 16] },
                        { "origin": [-8, 0, -2], "size": [6, 24, 4] }
                    ]
                }
            },
            {
                "condition": "q.block_state('minecraft:connection_north') && q.block_state('minecraft:connection_west') && q.block_state('minecraft:connection_east')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-8, 0, -8],
                        "size": [16, 16, 10]
                    },
                    "minecraft:collision_box": [
                        { "origin": [-8, 0, -2], "size": [16, 24, 4] },
                        { "origin": [-2, 0, -8], "size": [4, 24, 6] }
                    ]
                }
            },
            {
                "condition": "q.block_state('minecraft:connection_south') && q.block_state('minecraft:connection_west') && q.block_state('minecraft:connection_east')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-8, 0, -2],
                        "size": [16, 16, 10]
                    },
                    "minecraft:collision_box": [
                        { "origin": [-8, 0, -2], "size": [16, 24, 4] },
                        { "origin": [-2, 0, 2], "size": [4, 24, 6] }
                    ]
                }
            },
            // Four connections
            {
                "condition": "q.block_state('minecraft:connection_north') && q.block_state('minecraft:connection_south') && q.block_state('minecraft:connection_west') && q.block_state('minecraft:connection_east')",
                "components": {
                    "minecraft:selection_box": {
                        "origin": [-8, 0, -8],
                        "size": [16, 16, 16]
                    },
                    "minecraft:collision_box": [
                        { "origin": [-2, 0, -8], "size": [4, 24, 16] },
                        { "origin": [-8, 0, -2], "size": [16, 24, 4] }
                    ]
                }
            }
        ]
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293

Item JSON

Since our fence is made of wood, it should be able to be used as fuel in furnaces. Therefore, we need to add the minecraft:fuel component to the fence by replacing its block item as shown below:

📝 BP/items/custom_fence.json

json

{
    "format_version": "1.26.40",
    "minecraft:item": {
        "description": {
            "identifier": "wiki:custom_fence",
            "menu_category": {
                "category": "construction",
                "group": "minecraft:itemGroup.name.fence"
            }
        },
        "components": {
            "minecraft:block_placer": {
                "block": "wiki:custom_fence",
                "aligned_placement": true,
                "replace_block_item": true
            },
            "minecraft:fuel": {
                "duration": 3
            }
        }
    }
}

Contributors

Edit Custom Fences on GitHub

Text and image content on this page is licensed under the Creative Commons Attribution 4.0 International License

Code samples on this page are licensed under the MIT License

Custom Fences

Initial Block JSON ​

Fence Model ​

Block Model ​

Item Model ​

Applying Geometry & Textures ​

Item Visual ​

Collision & Selection Boxes ​

Final Block JSON ​

Item JSON ​

Contributors

Initial Block JSON

Fence Model

Block Model

Item Model

Applying Geometry & Textures

Item Visual

Collision & Selection Boxes

Final Block JSON

Item JSON
